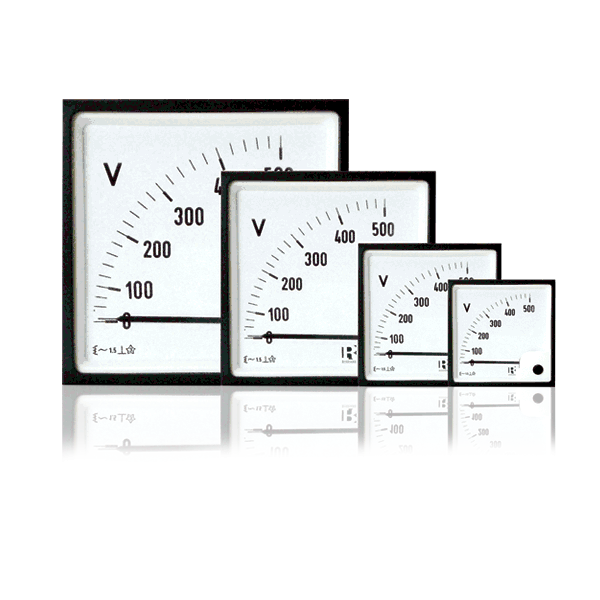

Ammeter and Voltmeter 90deg (DS)

The moving coil panel meters, housed in moulded polycarbonate cases are suitable for the measurement of DC currents and voltages.

These instruments offer several advantages in switchboards and Generating Set Panles. Number of meters can be mounted in a Panel Cut Out (Mosaic mounting). Front glass, bezel & dial can be easily replaced.

Some features

● Linear scale.
● Glass filled polycarbonate housing (UL 94-V-0).
● Knife edge pointer.

● Easily replaceable glass and bezel.

● Moving coil movement has pivots of very high hardness. Movement is suspended between two spring loaded sapphire jewels. Movement is properly shielded & critically damped by eddy currents induced in coil former.
